設備名稱 :磁場測試掃描儀

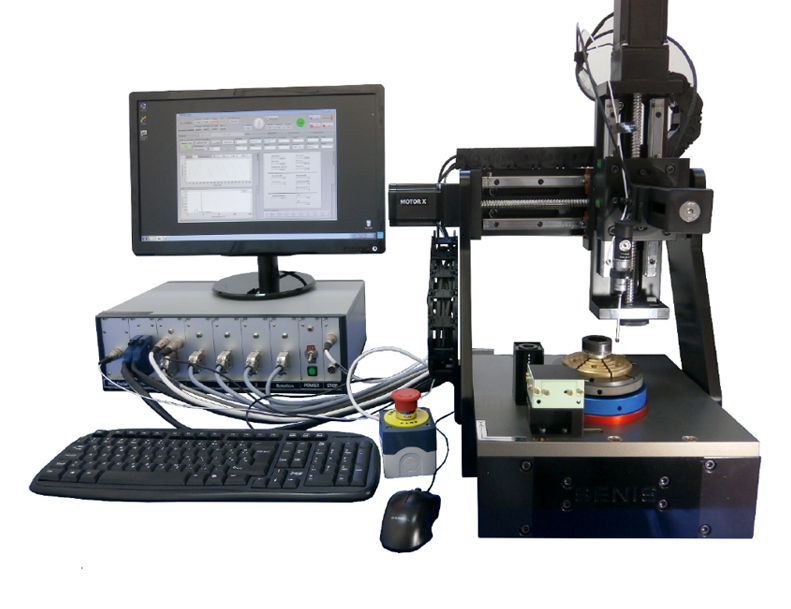

設備展示:
技術參數:
4 Axis capability: X,Y, Z and θ
Scanning volume: up to 500mm cubical volume
Scanning speed: up to 100mm/s
Probe positioning resolution: ±2μm (X,Y,Z) / ±0.02° (θ)
Standard magnetic resolution: < 10μT (rms)
Measurement accuracy: 0.1% of measurement range
Angular error (calibrated): 0.1°
Measuring sensitive volume: <150 x 10 x 150 μm
Magnetic field range: selectable ± 100μT - ±2T
Magnetic field bandwidth: DC to 25 kHz (-3 db)
